spring-tools/vscode-extensions/vscode-bosh

Bosh Deployment Manifest Editor for Visual Studio Code

This extension provides validation, content assist and documentation hovers for editing Bosh Deployment Manifest files.

Usage

Activating the Editor

The Bosh editor automatically activates when the name of the .yml file you are editing follows a certain pattern:

• **/*deployment*.yml : activates support for bosh manifest file.

You can also define your own patterns and map them to the language-id bosh-deployment-manifest by defining files.associations in workspace settings. See vscode documentation for details.

Targetting a specific Director

Some Validation and Content Assist use information dymanically retrieved from an active Bosh director. For these feature to work it is required that you

• have the bosh cli V2 installed (information is obtained by executing commands using the V2 cli)
• target a director by setting the BOSH_ENVIROMENT variable.

You can verify that you have set things up right by executing command:

bosh cloud-config --json

If setup correctly, it should return information about the cloud-config on your intended bosh director/environment.

Functionality

Validation

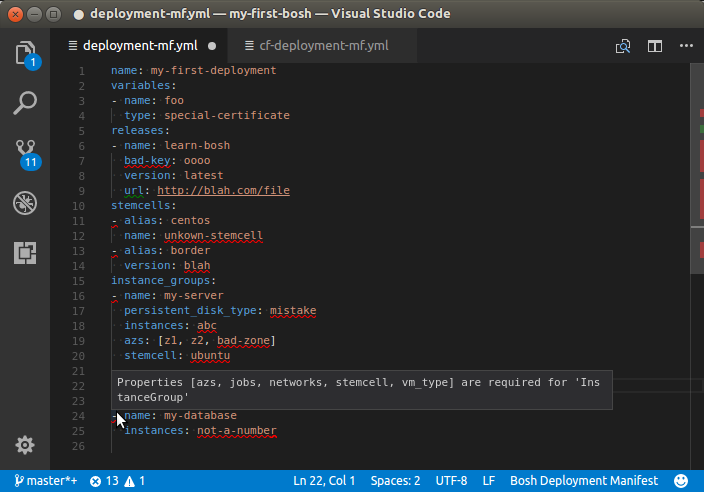

As you type the text is parsed and checked for basic syntactic and structural correctness. Hover over an error marker to see an explanation:

Content assist

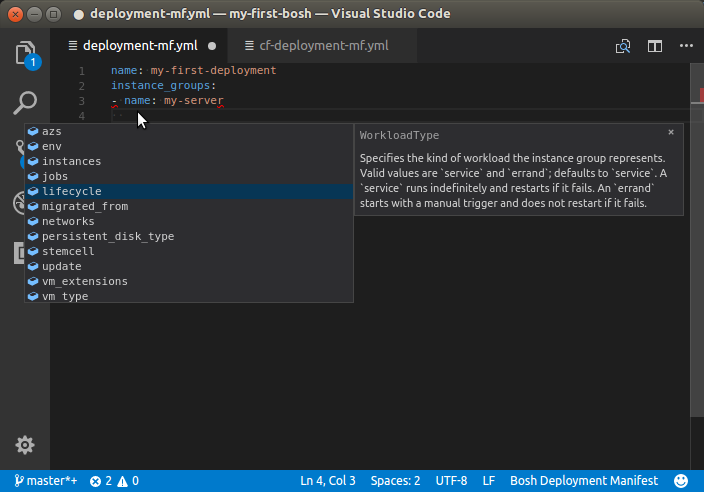

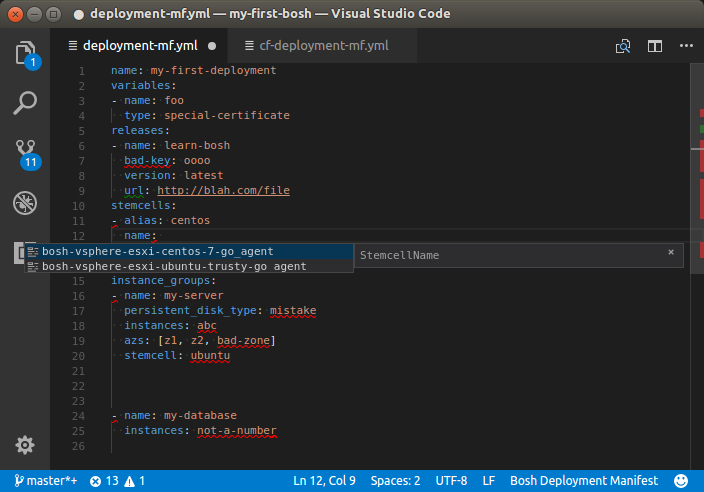

Having trouble remembering all the names of the attributes, and their spelling? Or can't remember the exact name/version of the stemcell you just uploaded to your bosh environment? Content assist to the rescue:

Documentation Hovers

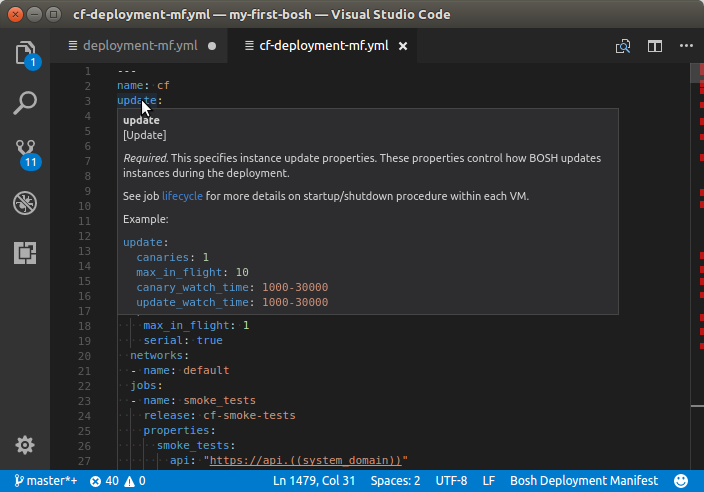

Having trouble remembering exactly what the meaning of each attribute is? Hover over an attribute and read its detailed documentation:

Goto Symbol in File

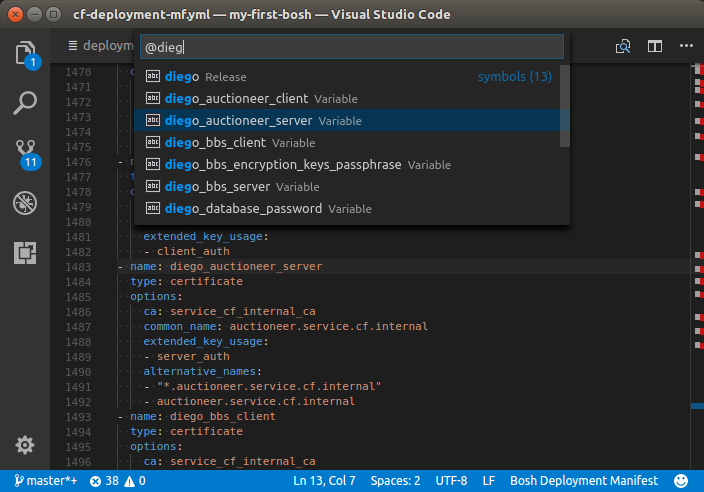

Is your Deployment Manifest getting larger and is it becoming harder to find a particular Instance Group, Release, or Stemcell definition? The "Goto Symbol in File" command helps you quickly jump to a specific definition.

Type CTRL-SHIFT-O to popup a list of all symbols in your current file. Start typing a name (or portion thereof) to narrow down the list. Select a symbol to jump directly to its location in the file.

Goto/Peek Definition

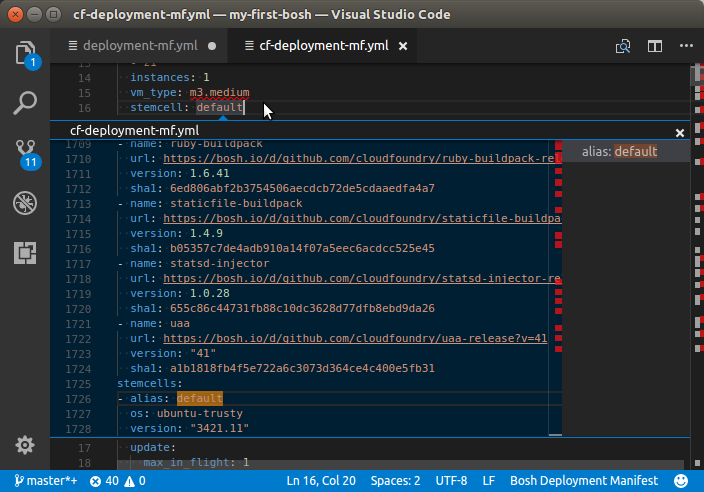

Use "Goto Defition" or "Peek Definition" to quickly go (or peek) from a Release or Stemcell name to its corresponding definition.

V2 versus V1 Schena

The editor is intended primarily to support editing manifests in the V2 schema. When you use attributes from the V1 schema the editor will detect this however and switch to 'V1 tolerance' mode.

In this mode, V1 properties are accepted but marked with deprecation warnings and V2 properties are marked as (unknown property) errors.

Issues and Feature Requests

Please report bugs, issues and feature requests on the Github STS4 issue tracker.
